Flier 35KW 15470 motor and 120V 500A HV brushless ESC (Global Warehouse)

  • Status : In StockSKU:F-500A
  • Was:0

    • Now:
    0


      Qty.Range(unit) Price(per unit) Discount
      1 0 No
    Wholesale inquiry
    Quote the freight after you click "Add to Cart"
    • 0
    • QTY :


      Customers Who Bought This Item Also Bought

      • Product Details
      • Manual
      • Video
      • Spare Parts

      F-120V-500A-A

      Specifications

      The spec as following:

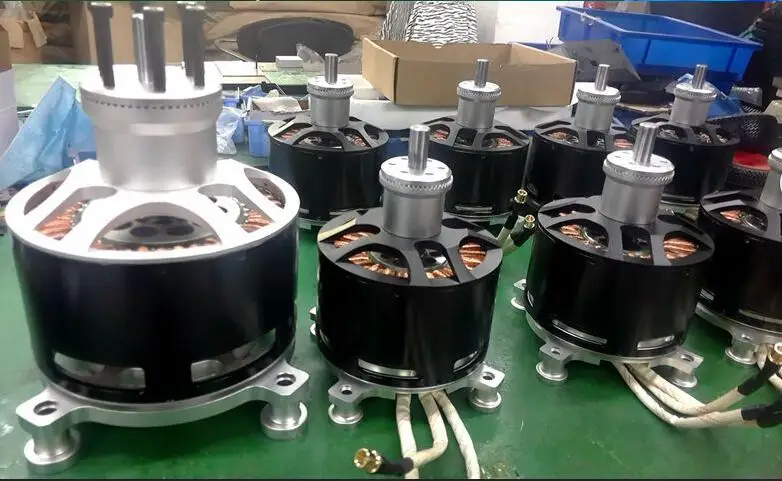

      MOTOR: MP15470

      KV: 35,55,80KV,pls tell us what's KV you need when you order it.

      MAX POWER: 35KW

      MAX AMP: 400A

      ESC:350A/400A

      MAX VOLT: 120V

      NO LOAD CURRENT(20v testing voltage): 0.9A

      RESISTANCE (mOhm): .94


      SIZE: 154 x 69.5( without shaft )

      Stator: 135*35mm

      WEIGHT (kg):3.18

      SHAFT: 15mm Accessory pack: Yes

      1.2



         Features

      1.Design for airplane, more functions



      2.Battery voltage from 12V to 65V for super high voltage version.



      3.Two way communication while connecting it with computer.



      4. Firmware can be upgraded by user.



      5. Motor cable can be inspected while Connecting the power battery



      6.Simply set function value by Prog-Box or by PC via USB link wire.



      7.Li-MH/Li-Po,Ne-Cd/Ne-mH,LiFe battery can be use.



      8.Enables setting the voltage per cell for the point at which the controller’s cut off circuitry engages.Li-MH/Li-Po from 2.0-3.6V,Ne-Cd/Ne-mH 0.4-1.0V,LiFe from2.2-2.8V



      9.Reverse function. the delay time of reverse is adjustable



      10.The power of the motor forward/ reverse can be set.



      11. Automatically detection the throttle route or can be set a fixed number by manual operation.



      12.Auto cut off the power within 3 seconds if no radio signs.



      13. Timing setting may be adjusted (0°-30°) to suit the motor type.
