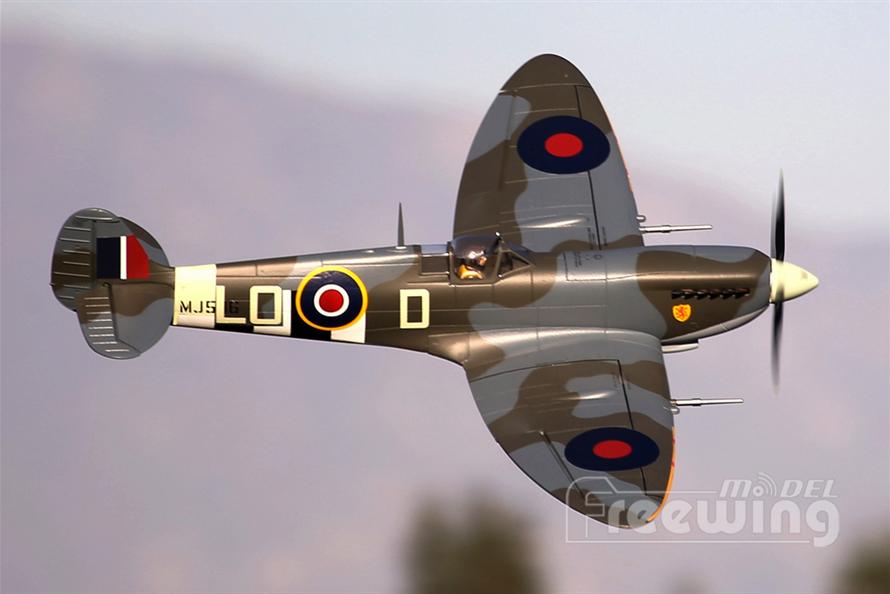

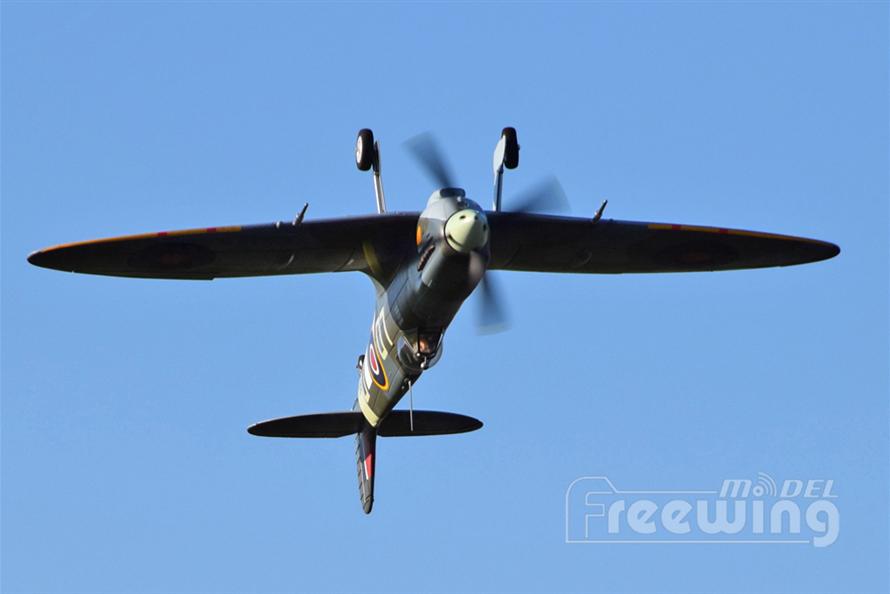

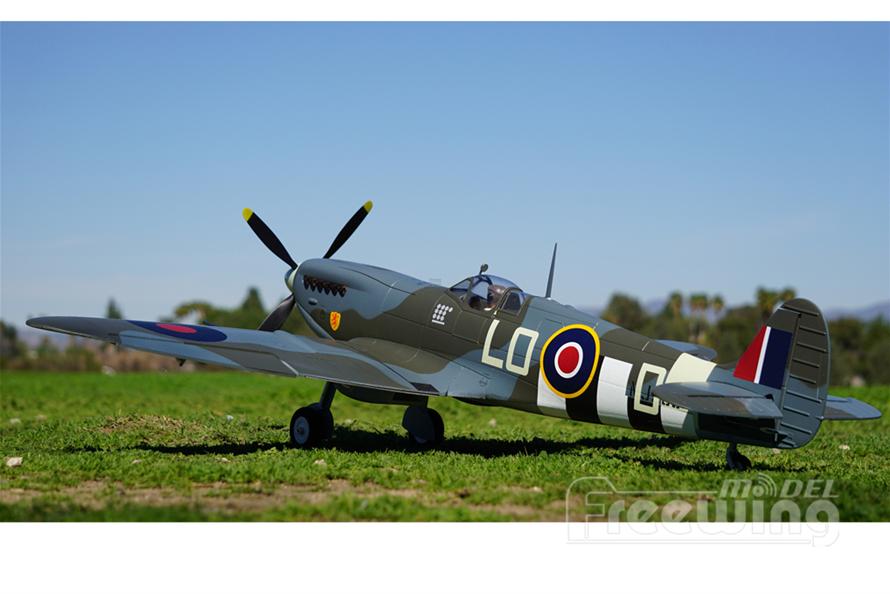

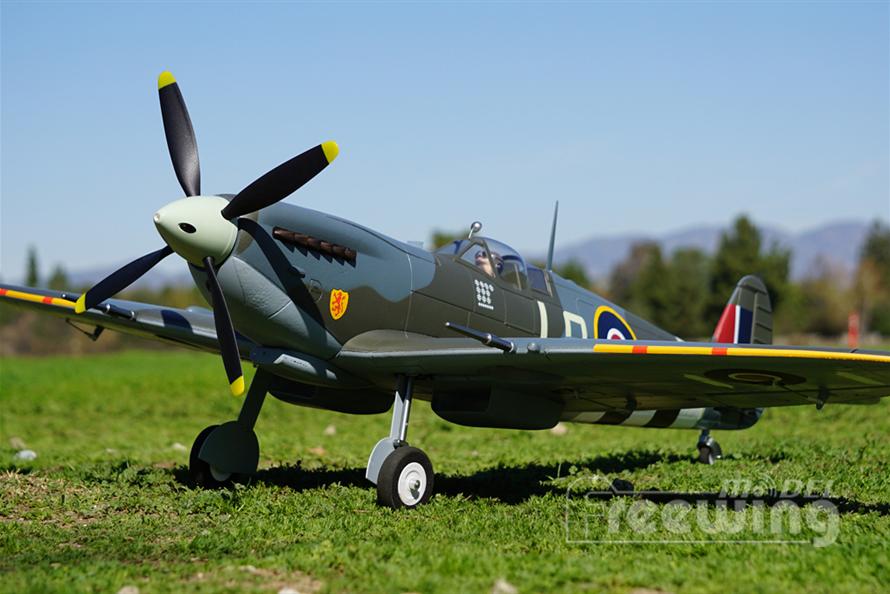

FlightLineRC Spitfire Mk.IX 1200mm (47 inch) Wingspan PNP Rc Airplane
1,3748-580Kv Brushless Outrunner Motor (Stock scale power system)
2, 6 Channel Radio
3, 6 Channel Receiver
The Spitfire also features oversized retracts with metal trunions and metal reinforcing plates,Slightly oversized tires help to minimize nose overs,With the recommended 4s 2650 mAh battery we obtain 5-6 minutes of mixed throttle scale flight,The model can also accommodate an 4s 3000mAh or even 4s 4000mAh battery for longer flight times, but the 2650mAh and 3000mAh are the best balance between speed, vertical power, flight duration, and wing loading
The Freewing 80mm Avanti S recently won first place for "Best Flight" at AEF 2017, so bring an award winner into your hangar today!
Removable main wing/elevator for easy transport
Split flaps for easier takeoffs and landings
High power motor for stock speeds up to 135kph/83mph
Intuitive internal structural design for optimized cooling of all electronics in the fuselage from the nose to the tail

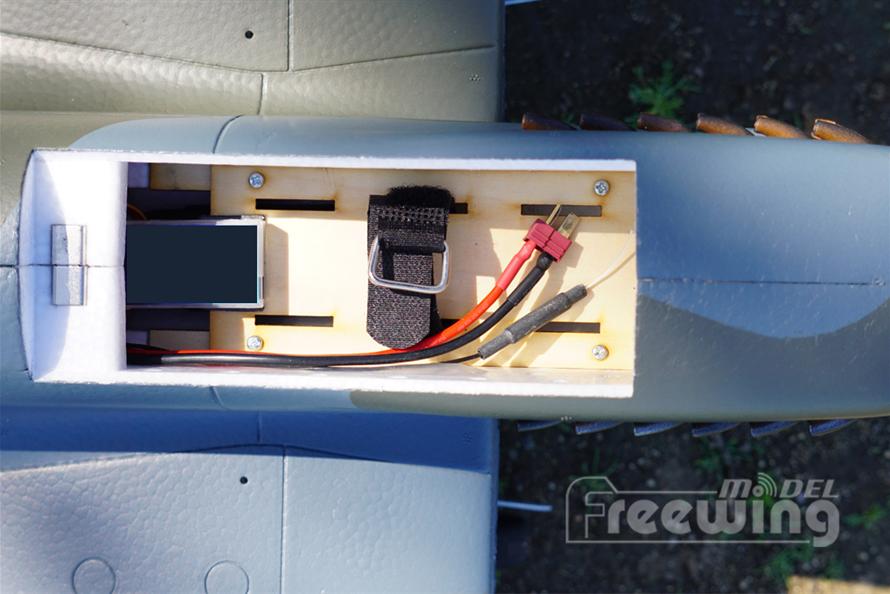

Large cabin space for easy placement of the battery and radio equipment
Built-in flat spot near the CG for optimal placement of a gyro (optional, sold separately)

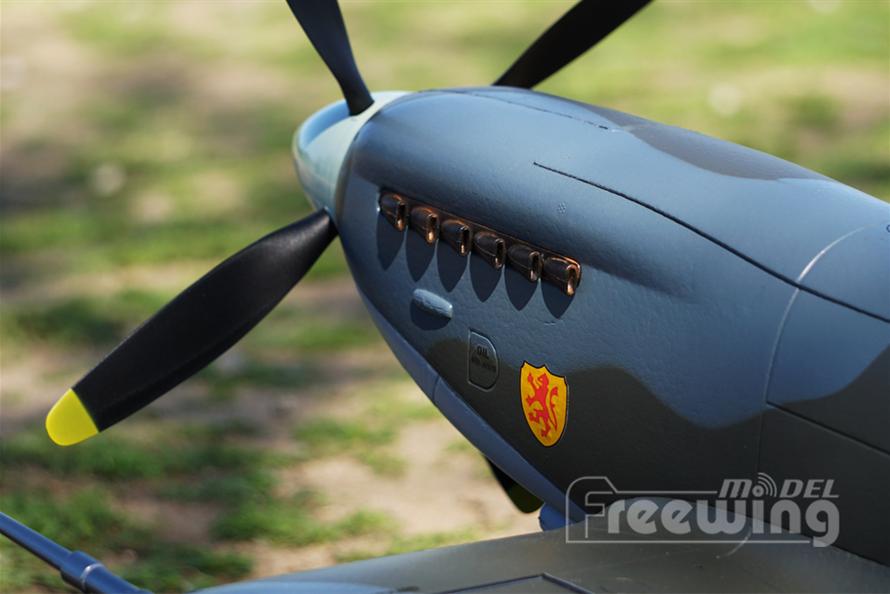

Improved spinner and propeller mounting design to enable better balance
Tall foam rubber 65mm diameter main wheels and additional forward rake angle for operating on short grass runways

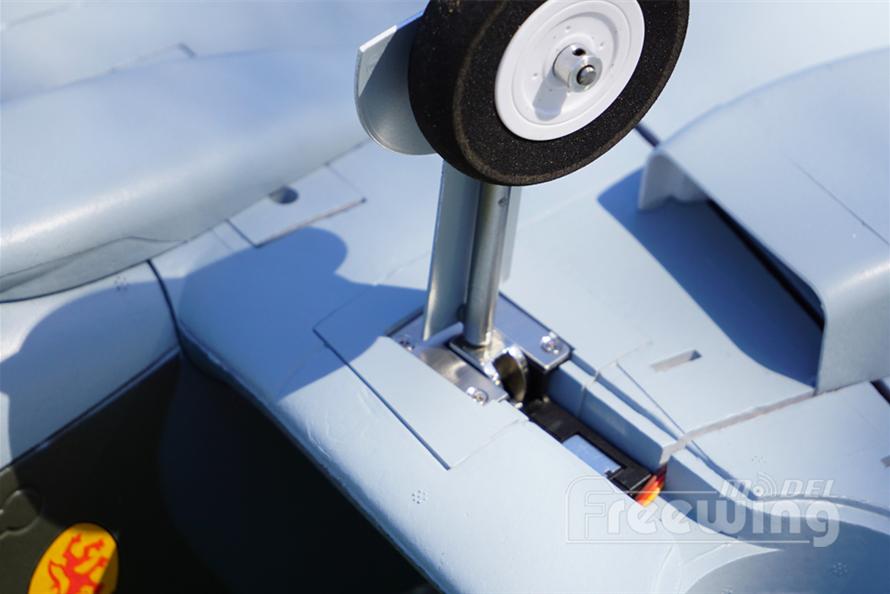

Electric retractable landing gear with metal trunions, metal reinforcement plate and 4mm steel wire struts
Optional two bladed propeller Sport Power System (sold separately) to achieve speeds up to 150kph/93mph
Attention:
There is an optional two bladed propeller Sport Power System (sold separately) to achieve speeds up to 150kph/93mph. This Sport Power System includes: 3648-880kV motor, 12x8 2 blade propeller, and 2 bladed spinner. This Sport Power System is suitable for all 1100-1200mm wingspan warbirds from the FlightLineRC brand.
Wingspan |
1200mm / 47in |
Length |
1085mm / 42.7in |
Flying Weight |
1550g / 54oz |
CG (Center of Gravity) | 80mm from the leading edge of the wing at the root |
Power System |
3748-580Kv Brushless Outrunner Motor (Stock scale power system) |
Electronic Speed Control |
60A Brushless with T connector |
Propeller / EDF |
12x7 4 Blade Propeller / 12x8 2 Blade Propeller High Performance Version (optional) |
Servos |
(2x) 9g metal gear (4x) 9g standard |
Landing Gear | Electric retracts with metal trunions |
Required Battery |
4S 14.8V 2650mAh - 4000mAh Li-Po with T connector |
Required Radio |
6+ Channel 2.4GHz |
Ailerons | Yes |
Elevator |
Yes |
Rudder | Yes |
Flaps |
Split Flaps |
Lights |
No |
Hinge Type |
Nylon and Foam hinges |
Material | EPO Foam |
Skill Level | Intermediate |
Build Time | 2 Hours |
Recommended Environment | Outdoor, minimum 200 foot runway, pavement recommended, less than 1" tall smooth grass |
