GXservo 135kg Large Torque High Voltage 6.0-8.4V CNC Aluminium Shell Metal Gear Waterproof UAV Servo (4XPack)(Free shipping) (Global Warehouse)

  • Status : In StockSKU:25623
  • Was:0

    • Now:
    0


      Qty.Range(unit) Price(per unit) Discount
      1 0 No
    Wholesale inquiry
    Quote the freight after you click "Add to Cart"
    • 0
    • QTY :


      Customers Who Bought This Item Also Bought

      • Product Details
      • Manual
      • Video
      • Spare Parts

      Description







      Features:

      1. 6.0V-8.4V High voltage.High performance digital High Voltage Brushless.

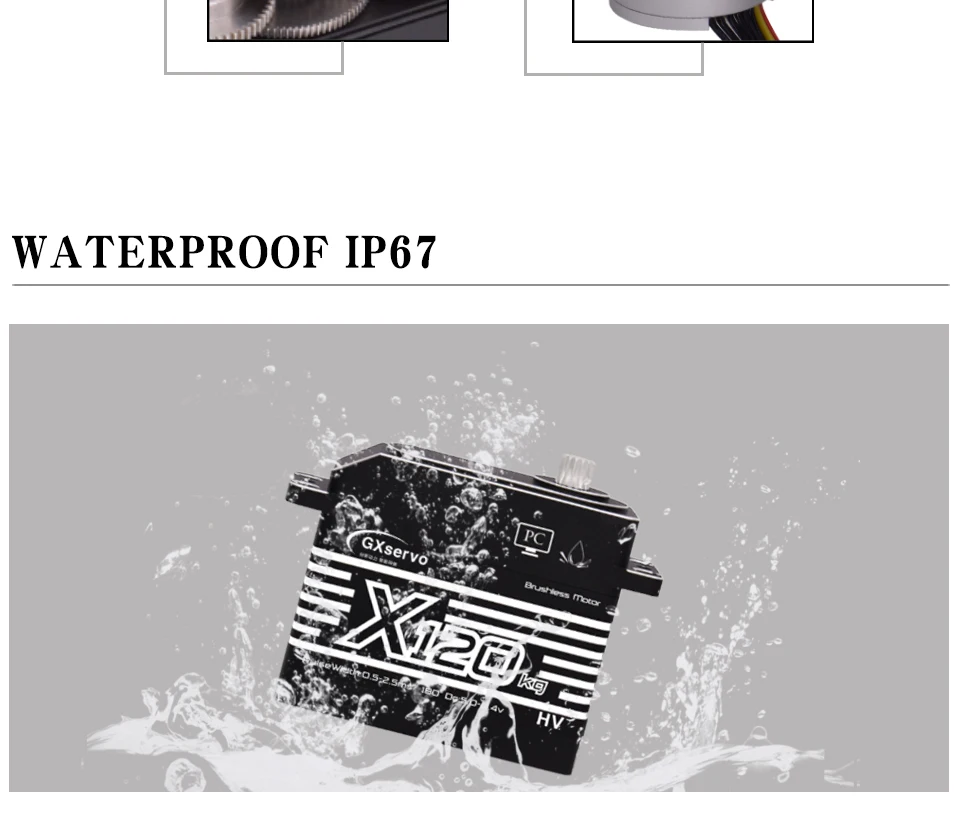

      2. Waterproof performance: IP67.

      3. Precision metal steering gear.

      4.  Widely Use Digital Servo:The steering servo (Control Angle 180°) Compatible with 1/5, Scale Clawer Truck, Traxxas,

      scx10, RC Car / Robot / Boat and other remote control models.



      Description:

      120KG Large torque Digital Waterproof servo,adopt Brushless motor,Compared with ordinary servo, the speed is much faster and the

      reaction is also fast,6.0V ~8.4V High Operation Voltage Range,

      It's a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!



      Specifications:

       Brand:                                 GXservo

       Model:                                 X120



      Puise Width:                             500μs-2500μs =180°/270°/360°

      Operating Speed:                     (6.0V)0.16sec60°

      Operating Speed:                     (7.4V)0.14sec60°

      Operating Speed:                     (8.4V)0.13sec60°

      Stall Torque(6.0V):                     110kg.cm

      Stall Torque(7.4V):                     120kg.cm

      Stall Torque(8.4V):                     135kg.cm

      Operating Voltage:                    6.0V-8.4V

      Gear Type:                                  Steel

      Motor:                                        Brushless motor

      Dead band:                                 2μs

      Ball Bearing:                               3BB

      Working Frequence:                   1520μs/330hz

      Shell Materal: CNC aviation aluminium alloy

      spline tooth?                             15T

      Control System:                          Customizable(PWM,RS485 ,TTL,CAN)

      Dimensions:                               65*30*58mm

      Weight:                                       210g

      Due to the different monitor and light effect, the actual color maybe a slight different from the picture color.
      Please allow 1-3mm differs due to manual measurement.




      Specifications

      Quantity

      1 pcs

      Size

      66*30*58mm

      Model Number

      X120

      For Vehicle Type

      Cars

      Four-wheel Drive Attributes

      Assemblage

      Remote Control Peripherals/Devices

      Servos

      Upgrade Parts/Accessories

      Gear

      RC Parts & Accs

      Servos

      Material

      Metal

      Brand Name

      GXservo

      Origin

      Mainland China

      Recommend Age

      12+y

      Use

      Vehicles & Remote Control Toys

      Certification

      CE
