HENGLI HL W9225 W92-25 MOTOR (KV 90/160/180/205) HIGH POWER TORQUE FOR LARGE MULTIROTERS (Global Warehouse)

  • Status : In StockSKU:HENGLIW9225KVGL
  • Was:0

    • Now:
    0


      Qty.Range(unit) Price(per unit) Discount
      1 0 No
      2 0 3%
      3 0 5%
      4+ 0 7%
      * Discounts may vary based on options above
    Wholesale inquiry
    Quote the freight after you click "Add to Cart"
    • 0
    • QTY :


      Customers Who Bought This Item Also Bought
      Product Tags

      • Product Details
      • Manual
      • Video
      • Spare Parts

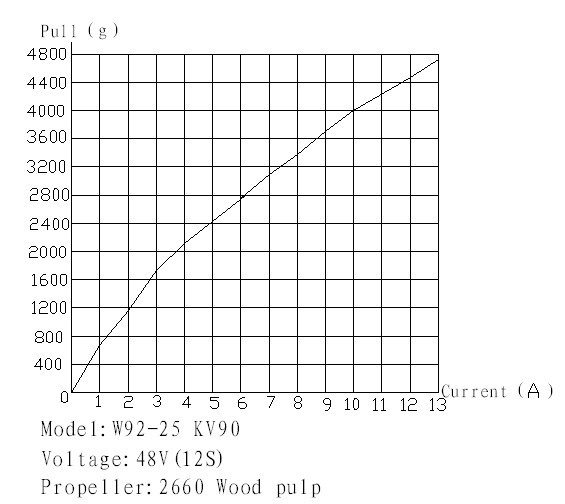

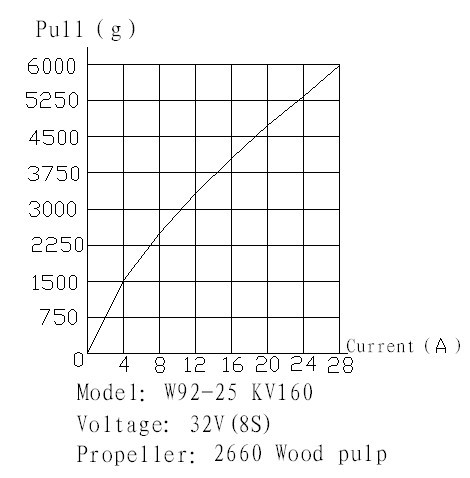

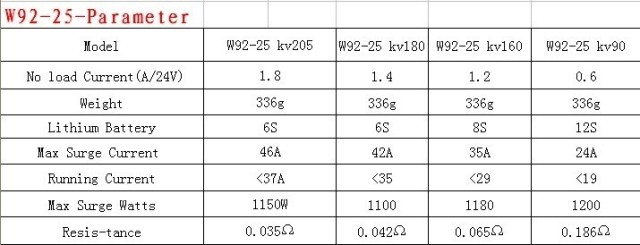

      HIS IS VERY HIGH QUALITY MOTOR MADE BY HENGLI HL FACTORY. THEY ALSO LABLE SOME OTHER BRANDS ON THE MARKET WITH THE SAME MOTOR JUST BY DIFFERENT COLOR. WE DO HAVE THE COMBO OPTION WITH THE PROP TO SAVE $$$. PLEASE READ TECHNICAL DATA BELOW CAREFULLY TO SELECT THE MOTOR WITH DIFFERENT KV FROM 90 TO 205 TO SUIT YOUR REQUEST. HERE WE ONLY ATTACHED THE PULL/CURRENT RATIO DIAGRAM FOR KV90 AND KV160.

      Description

      Hengli HL W9225 KV90 High Power 4.8kg Torque Motor for Large Hexacopter Octocopter



      Description:
      - Model:W9225 KV90
      - Max torque:4.8kg
      - No load current(A/24V): 0.6A
      - Weight: 336g
      - Lithium battery: 12S
      - Max.surge current: 24A
      - Running current: <19
      - Max.surge Watts: 1200
      - Resistance: 0.186Ω

      Hengli HL W9225 W92-25 KV160 High Power 5.6kg Torque Motor for Large Hexacopter Octocopter



      Specifications:
      - Model:W9225 KV160
      - MAx torque:5.6kg
      - No load current(A/24V): 1.2A
      - Weight: 336g
      - Lithium battery: 8S
      - Max.surge current: 35A
      - Running current: <29
      - Max.surge Watts: 1180
      - Resistance: 0.065Ω















      Note:
      - Battery, radio and FPV screen are not included.
      - We USE DHL?OR UPS?OR TNT depending on the real time shipper availibitity.
      - For some countires like Russia or remote areas which cannot ship with DHL Express, we will ship the product by EMS express instead.
