SPECIFICATIONS:
Wingspan:1500mm (59.1in)
Length:1663mm (65.5in)
Flying Weight:6.5kg (14.3 lb)
Turbine Engine:SW60 6KG brushed / SW60B 6KG brushless (required & not included)
Cruising speed:250 km/h
Flying time:6 min (avg)
Wing area:34.28 dm2
Wing load:189.6 g/dm2

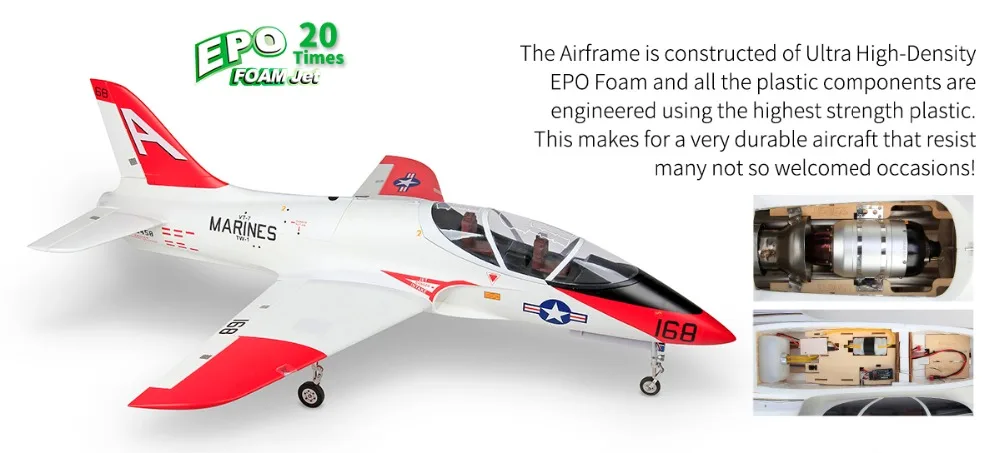

Main material:20 times EPO
Painting surface:matte paint
Suitable experience level:Intermediate
PNP Assembly difficulty:10mins 30mins 60mins
Suitable for ambient temperature:0°C-40°C
Radio System:8 channel (required & not included)

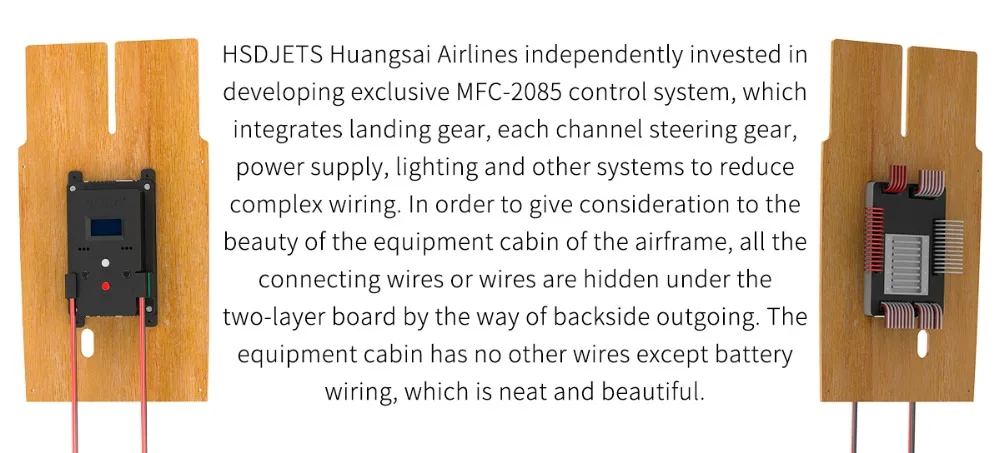

Control System:MFC-2085

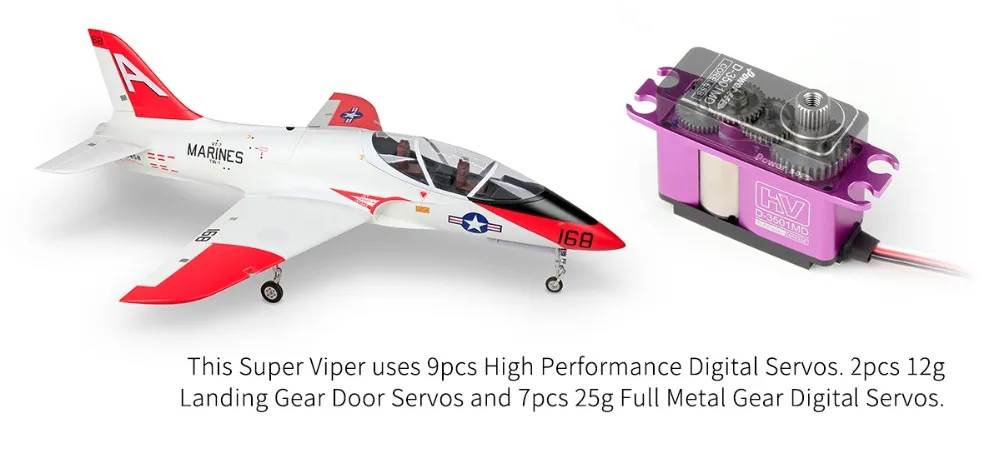

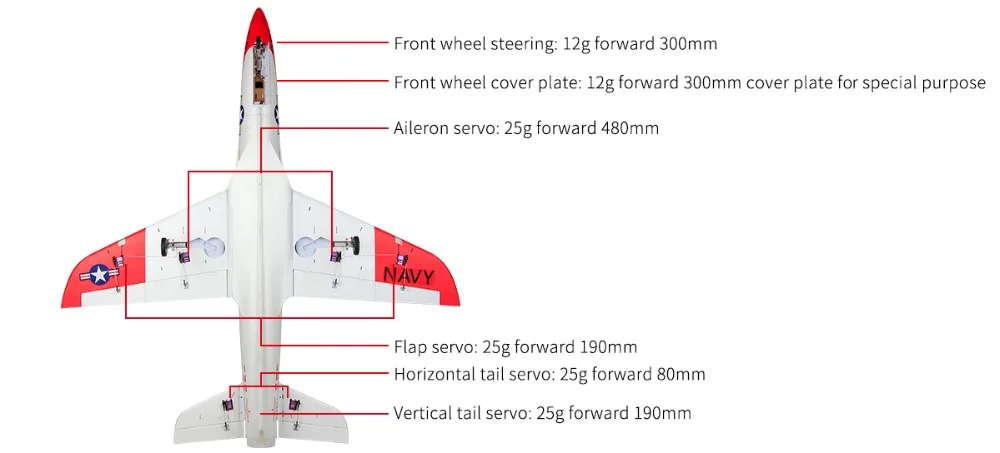

Servos:
25g×2 Metal gear with 480mm lead (left & right ailerons forward)
25g×3 Metal gear with 190mm lead (Flap×2 & rudder×1 forward)
25g×2 Metal gear with 80mm lead (elevator forward)
12g×1 Metal gear with 300mm lead (Nose wheel steering forward)

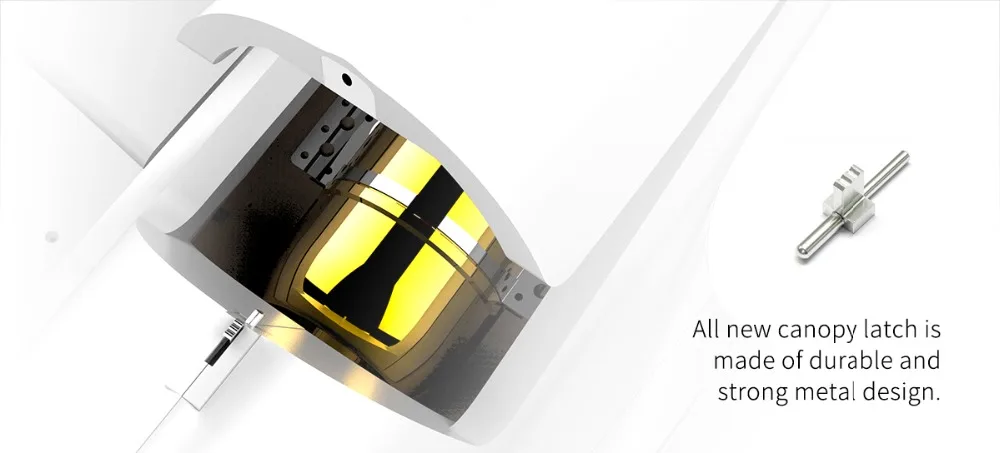

12g×1 Metal gear (360°lock Hatch cover forward)
Recommended Battery:2S,7.4V,1800?2000mAh×2,LiPo with T type plug(required & not included)
Ailerons:Yes

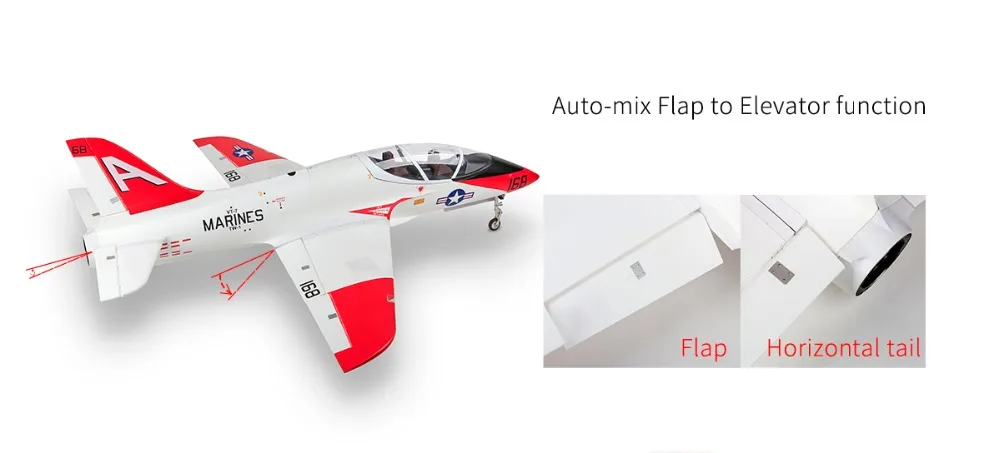

Flaps:Yes
Elevator(Horizontal tail):Yes
Rudder(Vertical tail):Yes
The smoke system:Yes

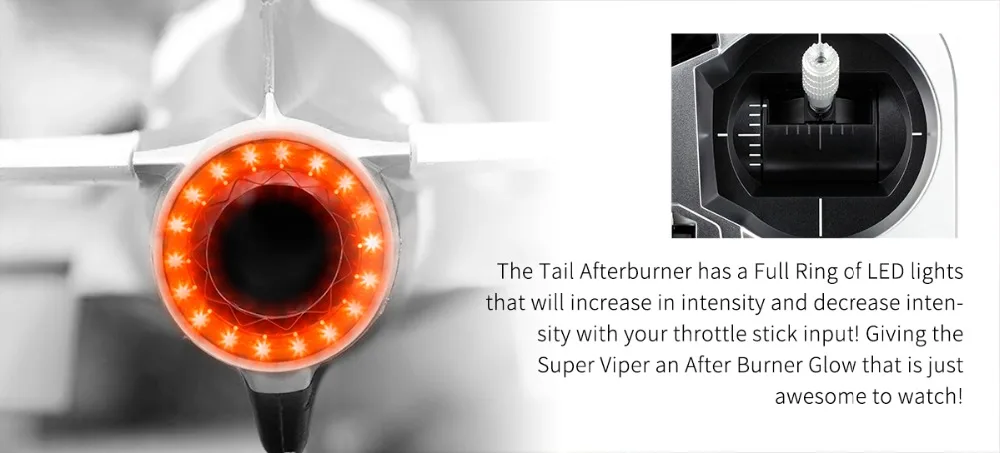

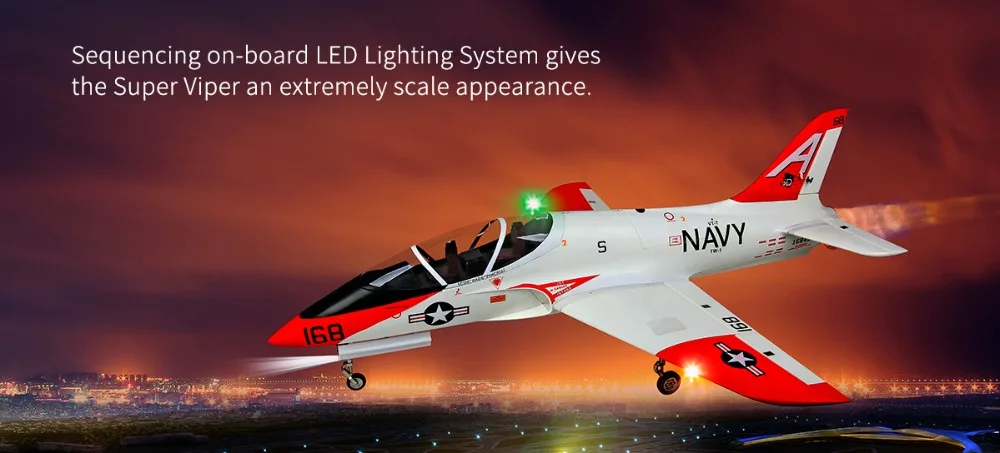

LED lights system:Yes

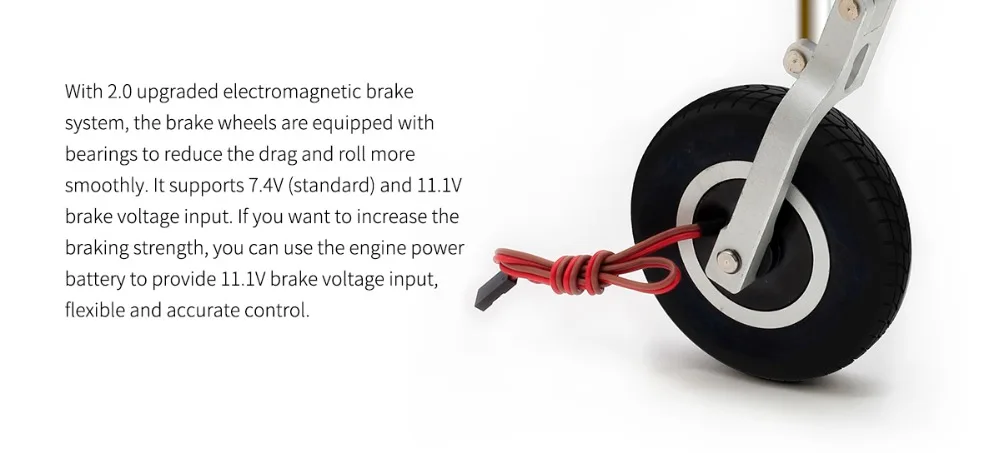

Electromagnetic brake system:Yes
Reinforced gyro:not included

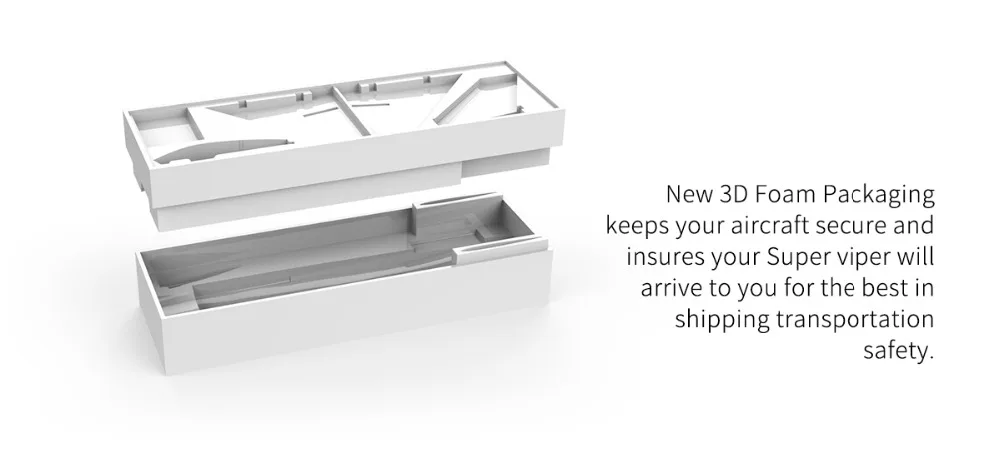

Packaging / Size:Packing Box + Outer Box(Card mark)/132.5×46×39.5(cm)

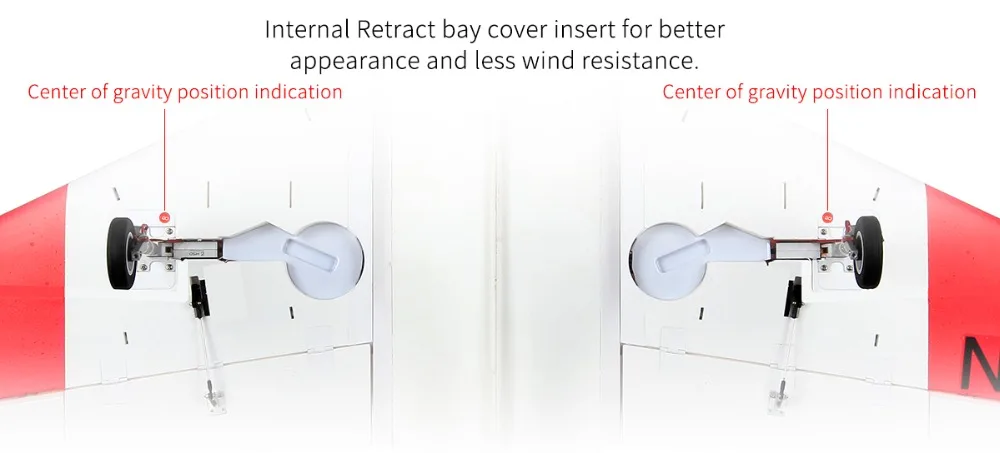

CG (Center of Gravity) 170mm from the leading edge of the Main Wing

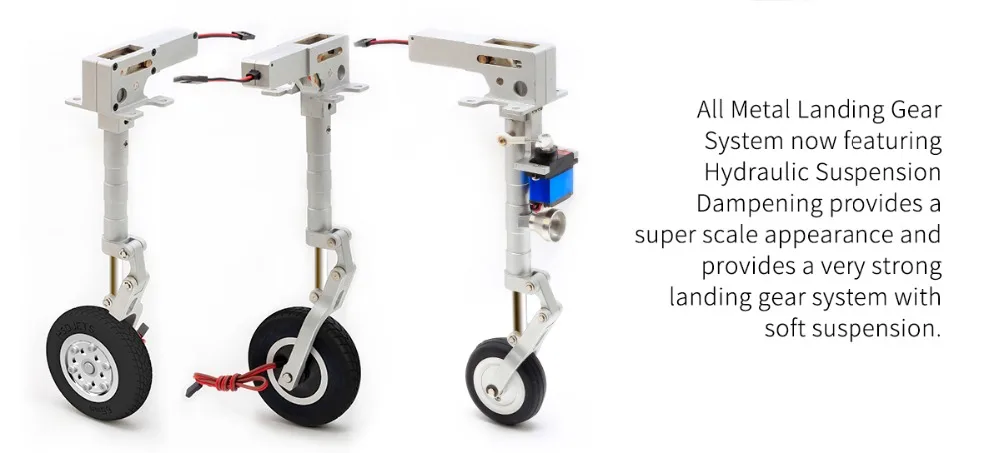

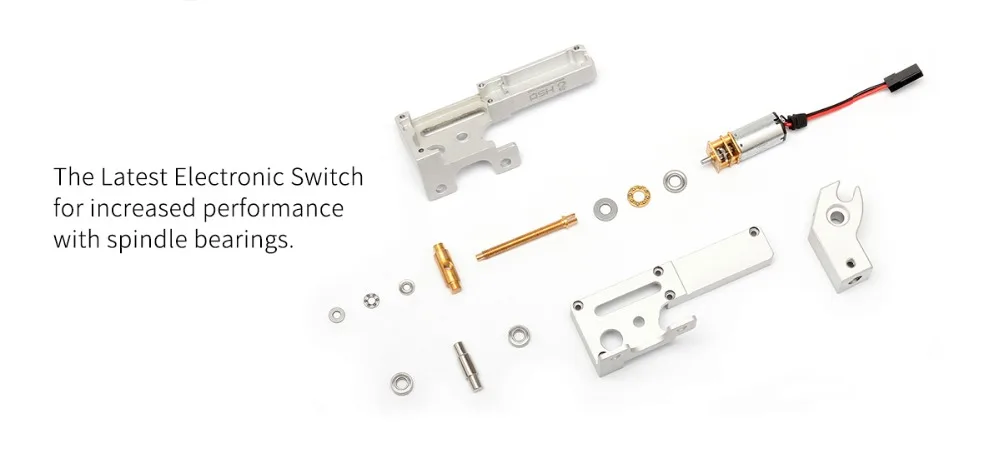

Landing Gears:Metal electric retractable hydraulic landing gear×3
Battery Charger:LiPo battery charger (required & not included)
PACKAGE INCLUDES:
Fuselage×1
Left Wing×1
Right Wing×1
Left Horizontal Stabilizer×1
Right Horizontal Stabilizer×1
Vertical Stabilizer×1
Nose×1
Cockpit canopy×1

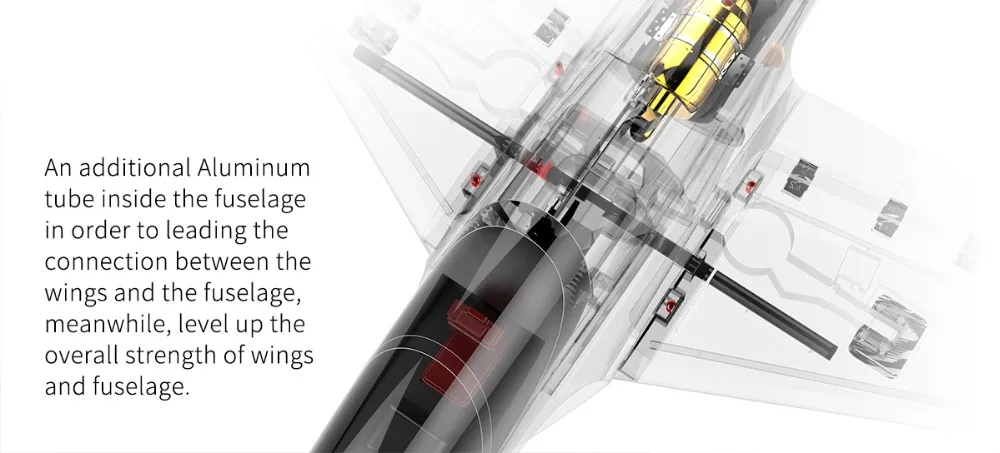

Main wing carbon tube L=598mm external diameter 16mm×1
Horizontal Stabilizer carbon tube L=500mm external diameter 6mm×1
Sticker×1
Capping board×1
Accessories Bag 1 ×1
Nylon rocker arm of the servo ×2
Double sided sponge paper×1
Screw (HM4×35mm)×4 (Nose)
Screw (HM3×14mm)×2 (Wing)
Screw (HM3×10mm)×2 (Wing)
Screw (PA3×14mm)×4 (Engine)
Screw (PA3×10mm)×4 (Tail nozzle)
Screw (PA3×8mm)×8 (Horizontal Stabilizer/Vertical Stabilizer)
Accessories Bag 2 ×1
L type 3mm inner six corner board hand×1
Screw (HM4×35mm)×4 (Nose)
Screw (HM3×14mm)×2 (Wing)
Screw (HM3×10mm)×2 (Wing)
Screw (PA3×14mm)×4 (Engine)
Screw (PA3×8mm)×8 (Horizontal Stabilizer/Vertical Stabilizer)
Manual×1
REQUIRES:
SW60 6KG brushed / SW60B 6KG brushless (required & not included)
8 channel radio system(radio & receiver) (required & not included)
2S,7.4V,1800?2000mAh×2,LiPo with T type plug (required & not included)
LiPo battery charger (required & not included)
Manuals:
Q: What does KIT means?
A:It means aircraft comes without any electronic equipments, such as motor,ESC,servos,remote control,battery,etc. Clients have to buy these equipments themselves.
Q: What does KIT+L means?
A:It's a KIT version but comes with landing gear installed.
Q: What does PNP means?
A: It means the aircraft got equipments already installed and tested, but clients have to buy remote control,receiver,battery and the charger themselves. For example:servos,ESC,power system,landing gear,control system(UBEC included but no power supply), light cables(according to the model of aircrafts).It's a 90% installation.Note: turbojet series products do not include turbojet engine.
Q: What does PNP+T means?
A: It's a PNP version with engine(general means turbine) installed and tested. It's a 95% installation.
Q: What does RTF means?
A: It means the aircraft comes with completely equipment installation(including battery supply,charger,remote control and receiver). It's a 100% installation.
