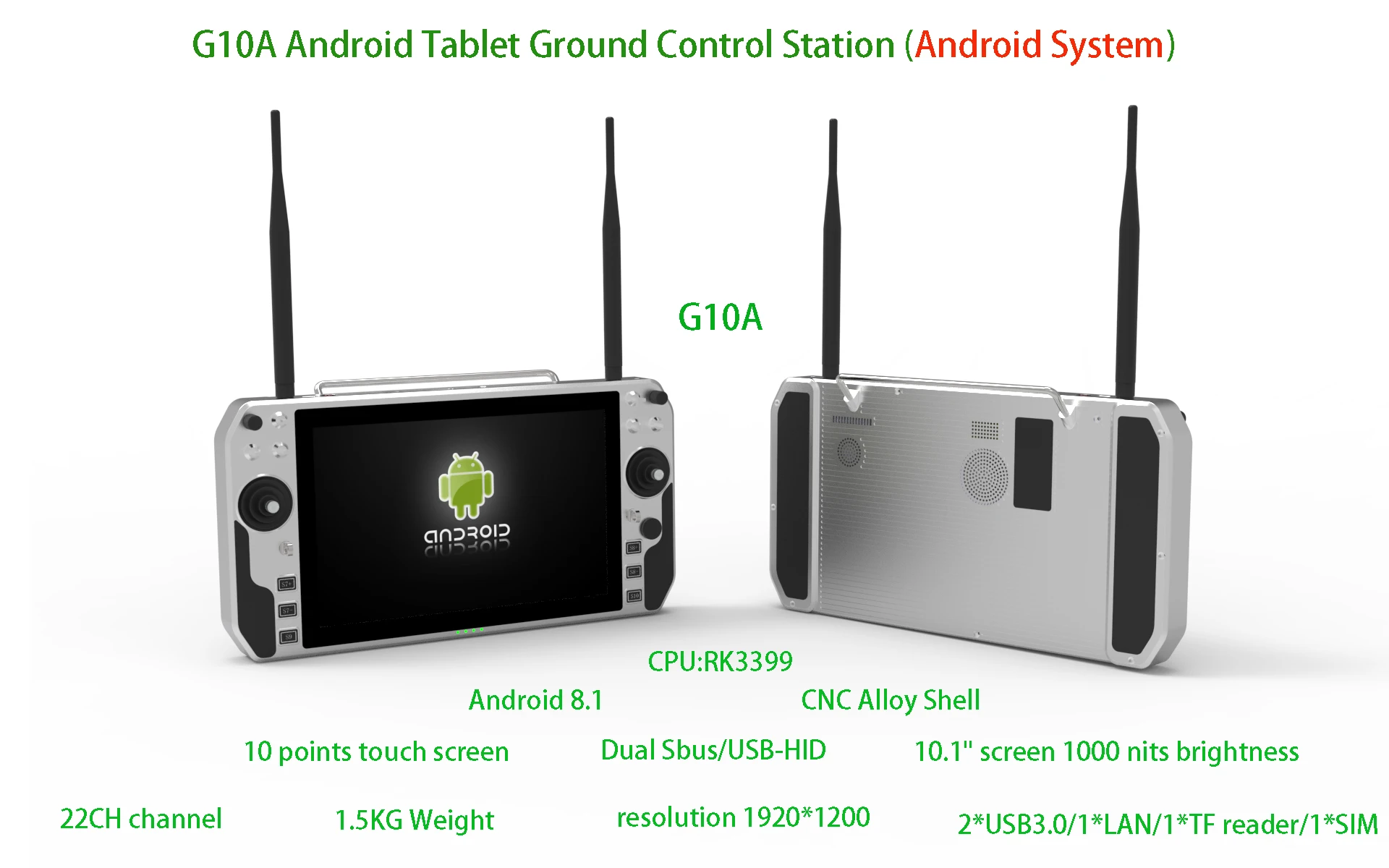

The G10A series adopts the Ruixin Micro RK3399 six core processor, equipped with the Android 8.1 system, with built-in 1W high-power 22 kilometer long-distance image data transmission, advanced wireless channel coding technology and channel control technology, making images clearer, with lower latency, longer distance, and stronger anti-interference.
Product Features
Available colors:Gun Grey / Silvery / Black
(1) The G10A series adopts the Ruixin Micro RK3399 six core processor, equipped with the Android 8.1 system, with built-in 1W high-power 22 kilometer long-distance image data transmission, advanced wireless channel coding technology and channel control technology, making images clearer, with lower latency, longer distance, and stronger anti-interference.
(2) Supports HDMI output (remote control end), SIM 4G card TF card, USB interface, dual serial port transparent transmission, dual SBUS and other rich interfaces.
(3) Using aviation aluminum alloy material and reasonable structural design, ensuring small volume, light weight, and good hand feel. G10A adopts a 10.1-inch anti glare AG industrial touch screen and a 1000CD/m2 sunlight visible screen. The image transmission frequency supports 800M, 1.4G, and 2.4G, with a maximum image transmission distance of 22KM and 1080P video transmission, with a delay as low as 200ms.
(4) Using high-energy density lithium-ion batteries, it can work for 6 hours at full charge and supports PD/QC protocol charging. When the outdoor power is insufficient, the power bank can be used for power supply.
(5) G10A supports dual serial port data transmission and dual SBUS output, with up to 22 physical channels, making it convenient to control the aircraft while also controlling pan tilt and other devices. G10A can support custom network segments, better compatible with various cameras, pan tilt, pods and other video devices. The handheld end supports HDMI video output, making it easy to expand the large screen display. It also supports WiFi hotspot sharing of flight videos and data, Convenient for other devices to view at the same time, the flight control data connection supports USB connection, UDP/TCP, and serial port connection, which is better compatible with various ground station software on the market.
(6) Protective measures such as dust-proof and splash proof are taken at the interfaces of each peripheral device to ensure stable and smooth operation of the equipment in harsh environments.
